Rosemount™ 1199 diaphragm seal system

The Rosemount 1199 diaphragm seal system protects the transmitter diaphragm from hot and cold, corrosive or viscous processes. The sealing system has a variety of solutions, including dedicated seals for the tricky process industry. This safety certification system requires no hardware installation and can be used for a variety of pressure measurement applications, providing reliable remote measurements.

Product Details: Rosemount 1199 Seal Systems

The Rosemount 1199 Seal Frameworks are a scope of elite execution pressure estimation arrangements intended for various modern applications. These frameworks are designed to give precise, dependable, and stable estimations in both open and shut tank conditions. The product is known for its vigorous development and high level plan, which incorporates a strain transmitter, a distant stomach, and an association framework loaded up with an optional fill liquid. This mix guarantees that the tension sensor of the transmitter is disconnected from the cycle medium, shielding it from expected harm and giving long haul exactness.

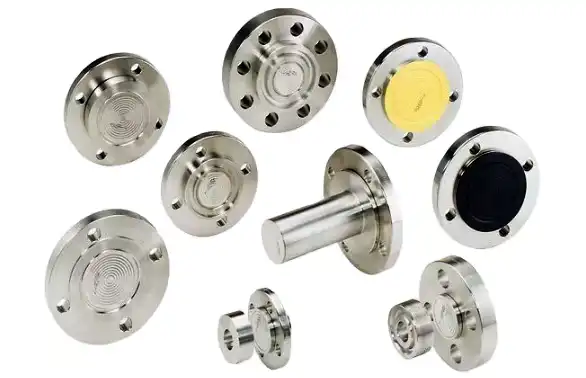

product-586-378

Product Specifications:

1. Sealing system type: direct installation, remote installation, adjustment system, balance system.
2. Transmitter connection: repairable welding, fully welded
Process connectors Flange type: ANSI/ASME, EN/DIN, GOST and JIS
Thread type: NPT, DIN, ISO
Hygienic type.
3. Process liquid materials: 316L stainless steel, alloy C-276, Alloy 400, tantalum, gold-plated alloy 400, gold-plated 316L stainless steel, CorrosionShield PFA-coated 316 stainless steel, see PDS for a complete list of materials.
4. Certification: SIL 2/3 certification based on IEC 61508, 3A, NACE® certification, hazardous site certification implemented by an independent third party.

Product features:

1. Protect the transmitter diaphragm from corrosion, erosion or extreme process temperatures.
2. Various seals meet different process requirements and specifications, including industry-specific applications.
3. SIL 2/3 certification (carried out by a third party) based on IEC 61508 and FMEDA data pre-use certification for safe installation.
4. No hardware installation is required, reducing installation costs.
5. Adjustable direct mounting gauge or absolute seal systems for pressurized or vented tank applications.
6. The adjustable system reduces temperature impact by 10-20% and improves reaction time by 80% compared to conventional installations.

Packaging and Transportation:

The product are painstakingly bundled to guarantee they show up in wonderful condition. Every unit is safely encased in defensive bundling material and delivered utilizing solid transporters. We comply with all global transportation norms and guidelines to forestall any harm during travel.

product-1-1

Contact Us:

Shaaxi ZYY is an expert instrument organization work in the deals of premium brands like Emerson, Rosemount, Yokogawa, E+H, Azbil, Fisher, Honeywell, ABB, Siemens, and that's just the beginning. With north of 10 years of involvement as a provider, we offer an extensive variety of item models and are focused on giving proficient answers for our clients. For more item valuing data or to talk about your particular prerequisites, please contact us at lm@zyyinstrument.com.
