Level Transmitter

Specifications: Standard accuracy ± 0.08 in. (± 2 mm), extra accuracy ± 0.04 in. (± 1 mm)
Measuring range 131 ft (40 m), Rosemount 5408:SIS 82 ft (25 m) in safe mode
Working pressure 1450 psi (100 bar)
Operating temperature -76 to +482 °F (-60 to +250 °C)
Power Supply 4-20mA/HART: 12-42.4 VDC (Intrinsically Safe Installation 12-30 VDC), Foundation™
Fieldbus: 9-32 VDC (Intrinsically Safe Installation 9-30 VDC, FISCO 9-17.5)
Communication protocol 4-20mA HART® (two-wire loop power supply), Foundation™ fieldbus
Certifications ATEX, IECEx, FM, CSA, 3-A and CRN
IEC 61508 certification for safety up to SIL2
Spill protection TÜV tested and WHG certified
Antenna Type Conical Antenna, Process Sealed Antenna, Parabolic Antenna

The Rosemount 5300 level transmitter is ideal for challenging liquid, slurry and solid measurements, providing superior reliability and safety in level and interface applications. The Rosemount 5300 is easy to install, requires no calibration, and is not affected by process conditions. The radar is SIL 2 certified, making it your first choice for safety applications. Its rugged construction and built-in powerful

Installation: The product can be installed directly or used with Tuned-System™ components.
Warranty: Offers a 5-year limited warranty.
Maximum Working Pressure: The product can handle up to 300 psi (20.68 bar).
Temperature Range: It operates within a temperature range from -105°C (-157°F) to 205°C (401°F), depending on the fill fluid used.
Communication Protocols: Compatible with various protocols including 4-20 MA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS® PA, and 1-5 V low power HART®.
Seal System: Features a direct mounting system.

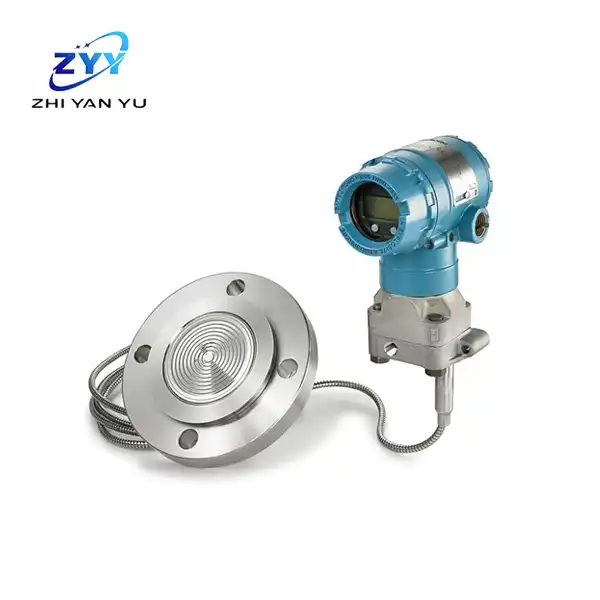

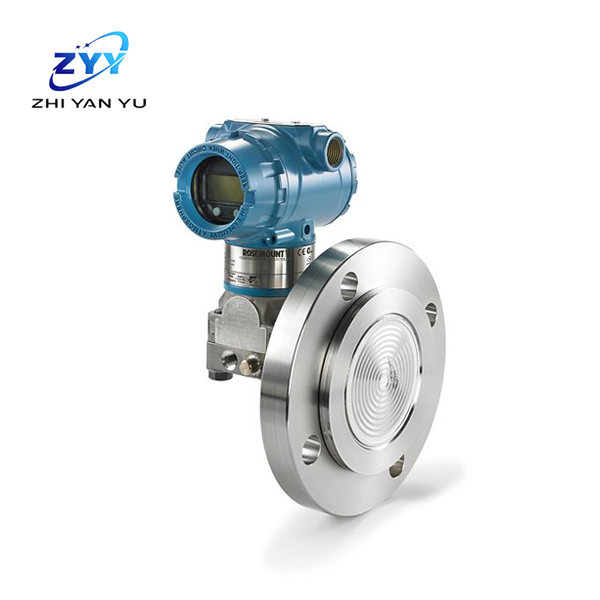

The reliable Rosemount 2051L level transmitter gives you more confidence. The transmitter is available with a variety of process connectors, materials and output protocols to meet a wide range of level measurement needs. The transmitter is certified for safety and can be matched with Tuned systems; Liquid level components are used or installed directly. Through the Local Operator Interface (LOI), the device enables simple field commissioning.
