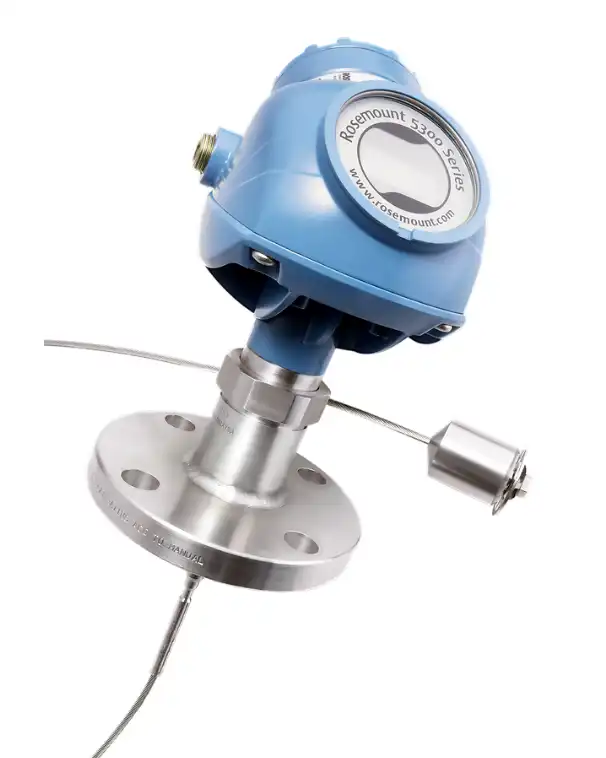

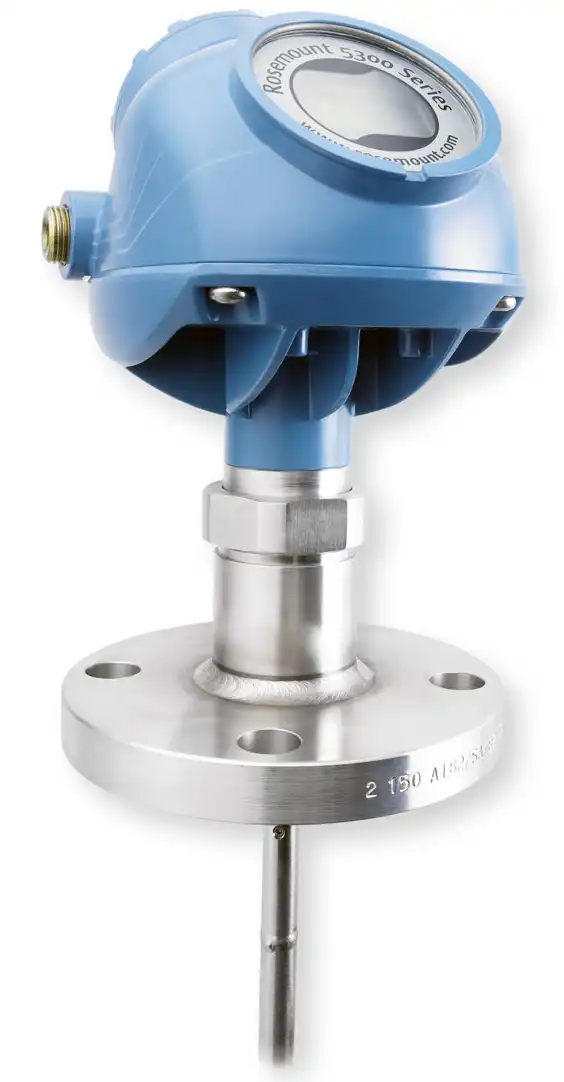

Rosemount™ 5300 Level Transmitter - Guided wave radar

The Rosemount 5300 level transmitter is ideal for challenging liquid, slurry and solid measurements, providing superior reliability and safety in level and interface applications. The Rosemount 5300 is easy to install, requires no calibration, and is not affected by process conditions. The radar is SIL 2 certified, making it your first choice for safety applications. Its rugged construction and built-in powerful

Product Details:

1. Accuracy ± 3 mm (0.12 in.).
2. Repeatability ± 1 mm (0.04 in.).
3. Measuring range up to 50 m (164 ft).
4. Working pressure full vacuum to 345 bar (full vacuum to 5000 psi).
5. Operating temperature -196 to 400 °C (-320 to 752 °F).
6. Communication protocol 4-20 mA/HART®, Foundation™ Fieldbus, Modbus®.
7. Safe SIL 2 IEC 61508 certification.
Overflow protection is TUV tested and WHG certified.
8. Diagnostics Enhanced diagnostics enable proactive maintenance.
9. Probe type hard single wire, segmented single wire, soft single wire, hard double wire, soft double wire, coaxial type, probe with PTFE coating, steam probe.
10. Warranty up to 5 years.

product-564-1082

product-606-758

Product Features:

1. Direct switching technology improves sensitivity, reliability and measurement range.
2. Signal quality indicators enable you to use level gauges in a proactive manner.
3. The probe end detection function can improve the reliability of liquid level measurement.
4. Dynamic steam compensation can improve the heat consumption rate of the factory.
5. Calibration reflector can realize unique calibration of liquid level transmitter.
6. Ultra-thin layer detection through Peak-in-Peak technology.

Packaging and Transportation:

The Rosemount 5300 Level Transmitter is securely packaged to ensure it reaches our customers in pristine condition. Our packaging experts ensure that the product is adequately protected against potential damages during transportation. We adhere to international shipping standards and regulations to facilitate a smooth logistics process.

product-1-1

Contact Us:

Shaaxi ZYY is a professional instrument company specializing in the sales of imported brands such as Emerson Rosemount, Yokogawa, Endress+Hauser, Fisher, Honeywell, ABB, Siemens, and more. With over a decade of experience as a supplier, we offer a wide range of product models and are dedicated to providing professional solutions for our clients. For more product pricing information, please contact us at lm@zyyinstrument.com. We look forward to serving you and exceeding your expectations.
