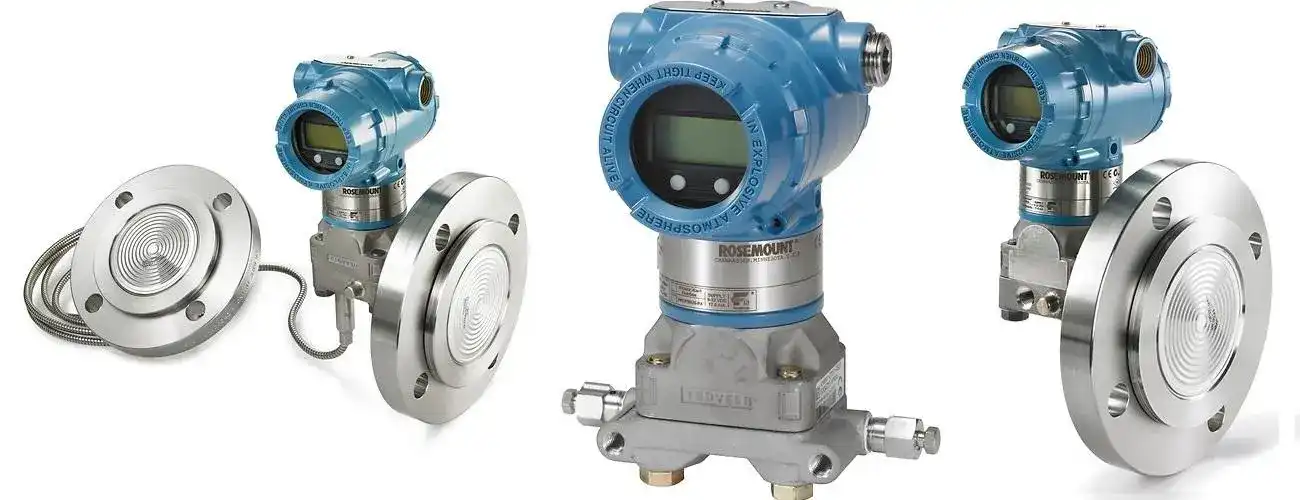

Rosemount ™ 2051L liquid level transmitter

The reliable Rosemount 2051L level transmitter gives you more confidence. The transmitter is available with a variety of process connectors, materials and output protocols to meet a wide range of level measurement needs. The transmitter is certified for safety and can be matched with Tuned systems; Liquid level components are used or installed directly. Through the Local Operator Interface (LOI), the device enables simple field commissioning.

Rosemount 2051L Liquid Level transmitter Specifications:

1. Maximum working pressure up to 300psi (20.68bar).
Process temperature range: based on filling liquid - up to 401°F (205°C) and down to -157°F (-105°C).
2. Communication protocols 4-20mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5V low Power HART®.
3. Sealing system type Direct installation, adjustable system.
Transmitter connector: weldable and repairable.
4. Process connector flange type: ANSI/ASME, EN/DIN, JIS.
5. Process liquid material 316L SST, alloy C-276, tantalum.
6. Diagnosis Basic diagnosis.

product-1300-500

Rosemount 2051L Liquid Level transmitter Features:

1. Design and configure a series of process connectors, materials and output protocols to meet various application requirements.
2. Adjustable system level assemblies and direct mounting provide excellent performance for level applications.
3. SIL 2/3 certification (carried out by a third party) based on IEC 61508 and FMEDA data pre-use certification for safe installation.
4. The Field Operation Display Panel (LOI) enables simple in-place commissioning without the need for additional tools or training.
5. Optimized sealing system structure ensures quality measurement under harsh process conditions.

Packaging and Transportation:

The Rosemount 2051L is securely packaged to ensure safe transportation and delivery. Each unit is individually boxed with protective materials to prevent damage during transit. We adhere to strict packaging guidelines to ensure that your product arrives in the same condition it left our facility.

product-1-1

Contact Us:

Shaaxi ZYY is a professional instrument company specializing in the sales of premium brands such as Emerson Rosemount, Yokogawa, Endress+Hauser (E+H), Azbil, Fisher, Honeywell, ABB, Siemens, and more. With over a decade of experience as a supplier, we offer a wide range of product models and are dedicated to providing professional solutions for our customers. For more product pricing information, please contact us at lm@zyyinstrument.com. We look forward to serving you and becoming your trusted partner in the world of industrial instrumentation.
