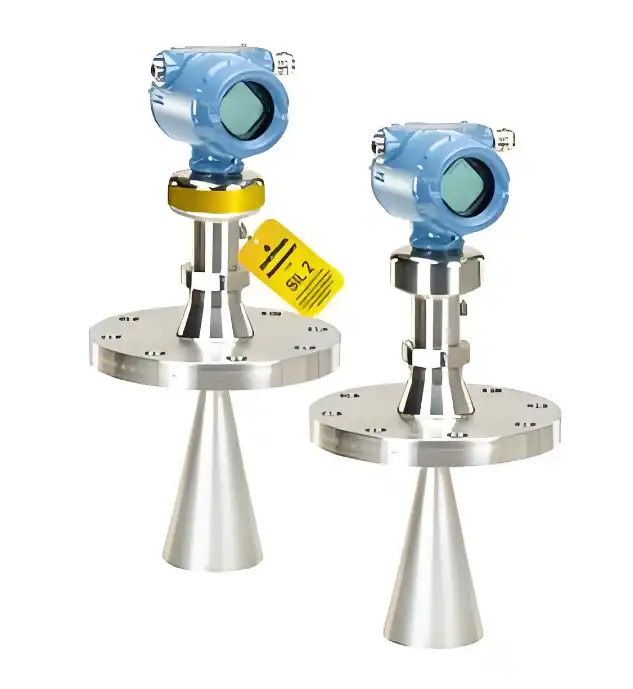

Rosemount™ 5408 Non-contact radar object/level transmitter

What is Rosemount 5408

The Rosemount 5408 is a state-of-the-art, non-contacting radar level transmitter designed to meet the rigorous demands of the industrial process control industry. This two-wire transmitter is engineered for continuous level measurements across a broad spectrum of liquids and slurries, ensuring reliability and accuracy even in the most challenging environments.

Key Features

1. Rosemount's contactless radar products with Smart Echo Supervision™ technology track all echoes, including those of obstacles in the container, and distinguish them from real product surface echoes. This ensures reliable and accurate reporting of true product levels.
2. 12V dc low lift voltage.
3. Not affected by intermittent power outages.
4. Unique PTFE seal design, no O-ring required.
5. The model is customized according to SIS requirements, in line with IEC 61508 SIL 2 certification standard.
6. Adopt unique solid algorithm for solid measurement.
7. Signal quality indicators: Proactively alert operators before potential problems such as antenna covering/fouling occur so preventive maintenance can be scheduled.
8. Smart instrument self-calibration: Built-in automatic diagnostic tools can protect the health and integrity of the transmitter without interrupting the process. Concise pass/fail reports to help identify and resolve potential issues. It can be run according to the schedule of user configuration or on demand.
9. Intelligent verification test package: Regular verification tests can be quickly conducted through built-in wizards, providing step-by-step guidance, dynamic visualization and other functions, and saving or printing detailed reports.
10. Process sealed antennas are used for highly condensing applications and aggressive media applications. Clamp connections are also available.
11. 3-A certification for hygienic applications.

General Specifications:

1. Accuracy: Standard type: ± 0.08 in. (± 2 mm)
Super precision type: ± 0.04in.(± 1mm).
2. Measurement range: 492 ft (150m), Rosemount 5408:SIS 130 ft (40 m) in safe mode.
3. Working pressure: -15 to 1450 psi (-1 to 100 bar).
4. Operating temperature: -76 to +482 °F (-60 to +250 °C).
5. Power Supply: 4-20mA/HART: 12-42.4VDC (intrinsic-safe installation 12-30 VDC)
Foundation™ Fieldbus: 9-32 VDC (intrinsically safe installation 9-30 VDC, FISCO 9-17.5 VDC).
6. Communication protocol: 4-20mA HART® (two-wire circuit power supply), Foundation™ Fieldbus.
7. Certificate/Certification: ATEX, IECEx, USA, Canada certification, 3-A, CRN.
8. Safety: Meet IEC 61508 Safety Integrity Level (SIL2) certification
Overflow protection is TUV tested and WHG certified.
9. Antenna type: Conical antenna, process sealed antenna, parabolic antenna.
10. Diagnosis: Advanced diagnosis with active maintenance ability: signal quality index, intelligent instrument self-calibration.
11. Warranty: Limited warranty up to 10 years.

Technical Support and Services

Shaaxi ZYY offers comprehensive technical support and services to ensure optimal performance and integration of the rosemount 5408 radar level transmitter into your process control systems. Our team of experts is available to assist with product selection, installation guidance, and troubleshooting.

For further inquiries or to obtain a quote, please reach out to us at lm@zyyinstrument.com. As a reputable supplier with over a decade of experience, Shaaxi ZYY is committed to providing our customers with the highest quality products and solutions from leading brands in the industry. We look forward to being your partner in industrial automation and control.
