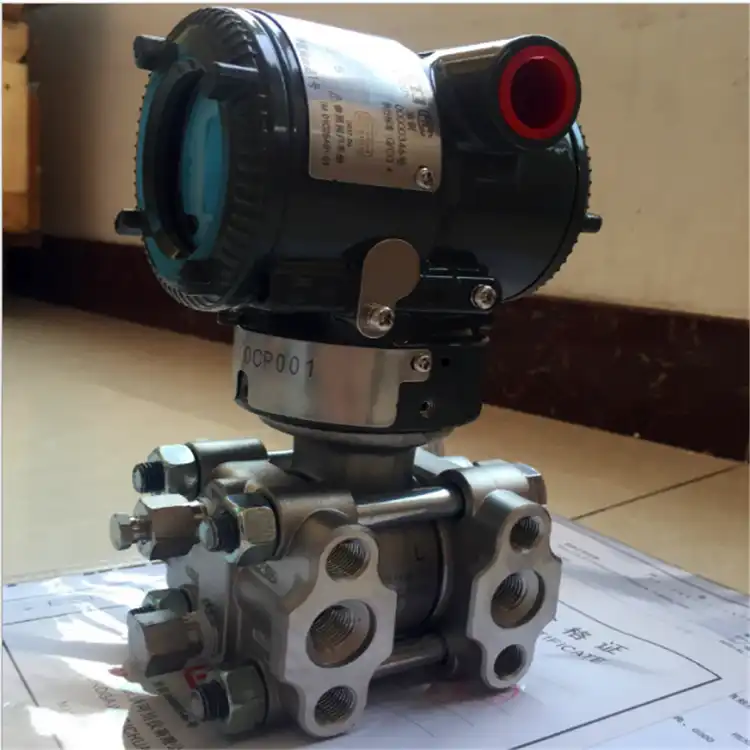

Yokogawa EJA110E High performance differential pressure transmitter

Yokogawa EJA110E High performance differential pressure transmitter

The EJA110E high-performance differential pressure transmitter uses monocrystalline silicon resonant sensor technology and is suitable for measuring the flow, level, density and pressure of liquids, gases or vapors. The EJA110E converts the measured differential pressure into 4 ~ 20mA DC current signal output, and can measure, display or remotely monitor static pressure, with rapid response, remote setting, self-diagnosis and other functions.

Product specification: Yokogawa EJA110E Differential Pressure Transmitter

1. Measurement type
Principal variable: Differential pressure (DP)
Auxiliary variable: Static pressure (SP)
2. Reference accuracy
Principal variable: ± 0.055%
Auxiliary variable: ± 0.5%
3. Response time
Primary variable: 90 milliseconds
Auxiliary variable :360 milliseconds
4. Long-term stability
Principal variable: ± 0.1% URL/10 years
5. Influence of overpressure
Main variable: ± 0.03% URL
6. Range ratio
Principal variable: 100:1

product-750-750

Product Features:

1. Accuracy ± 0.055% (optional accuracy ± 0.04%).
2. Stability ± 0.1% URL/10 years.
3. Response time 90 ms.
4. TUV and Exida SIL 2 / SIL3 certification.
5. Maximum working pressure 2,300 psi (optional 3,600 psi).
6. Set local parameters (LPS).
7. Provide HART 5/7, HART(1~5V DC) low-power, FF fieldbus, PROFIBUS PA and BRAIN and other communication protocols.

Contact Us:

Shaaxi ZYY is an expert instrument organization spend significant time in the deals of imported brands like Emerson, Rosemount, Yokogawa, E+H, Azbil, Fisher, Honeywell, ABB, Siemens, and that's just the beginning. With north of 10 years of involvement as a provider, we offer an extensive variety of item models and are devoted to giving proficient answers for our clients. For more item valuing data or to talk about your particular prerequisites, please contact us at lm@zyyinstrument.com. We look forward to serving you and becoming your trusted partner in process control and instrumentation.

YOU MAY LIKE

Rosemount 1151DP

Rosemount 1151DP

Output pressure range:
0~40KPa
0~250KPa
0~0.16~1MPa
0~0.4~2.5MPa
0~1.6~10MPa
Output type:
Ordinary analog type: 4~20mA
Conventional smart type: 4~20mA
Intended use: liquids, gases and vapors.
View More
Rosemount 1151HP Differential Pressure Transmitter

Rosemount 1151HP Differential Pressure Transmitter

Output pressure range:
0~40KPa
0~250KPa
0~0.16~1MPa
0~0.4~2.5MPa
0~1.6~10MPa
Output type:
Ordinary analog type: 4~20mA
Conventional smart type: 4~20mA
Intended use: liquids, gases and vapors.
View More
Yokogawa EJA120E

Yokogawa EJA120E

Using single crystal silicon resonant sensor technology.
Suitable for measuring flow, level, density and pressure of liquid, gas or steam.
Output 4~20mA DC current signal.
Can measure static pressure.
Built-in display meter display or remote monitoring.
Fast response, remote setting, diagnostics and optional high/low pressure alarm output.
The diagnostic function can detect blockages in the pressure line or abnormalities in the heating system.
FF fieldbus type is available.
Except for the FF fieldbus type, it has passed TÜV certification and meets SIL 2 safety requirements.
View More
EJX120A Yokogawa

EJX120A Yokogawa

Using single crystal silicon resonant sensor technology.
Suitable for measuring flow, level, density and pressure of liquid, gas or steam.
Output 4~20mA DC current signal.
Can measure static pressure.
Built-in display meter display or remote monitoring.
Fast response, remote setting, diagnostics and optional high/low pressure alarm output.
The diagnostic function can detect blockages in the pressure line or abnormalities in the heating system.
FF fieldbus type is available.
Except for the FF fieldbus type, it has passed TÜV certification and meets SIL 2 safety requirements.
View More
Yokogawa EJX210A

Yokogawa EJX210A

Measure the level and density of solids or settling liquids.
Measure static pressure with built-in display or remote monitoring.
Fast response, remote setting, diagnostics and optional pressure alarm output.
Multi-sensing technology detects abnormalities such as blockage in the pressure pipeline.
FF fieldbus type is available.
TÜV certified and meets SIL 2 safety requirements.
View More

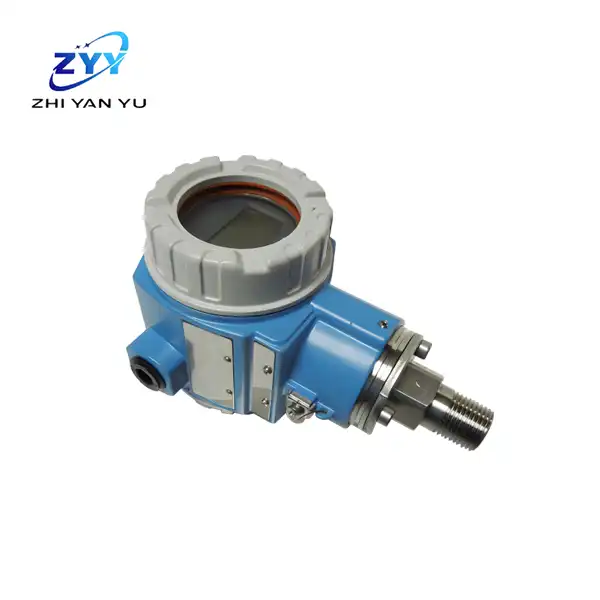

E+H PMD75
