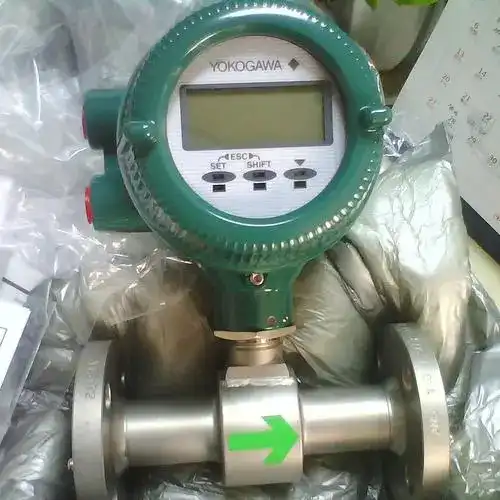

Axf Magnetic Flowmeter

Axf Magnetic Flowmeter Product Details

The Axf Magnetic Flowmeter is a precision instrument designed to measure the flow rate of electrically conductive fluids. The method makes use of Faraday's Law of Electromagnetism, which states that a fluid's generated voltage is proportional to its speed of flow as it passes through a field of magnetic particles. Modern engineering practices were used in the conceptualization of this flowmeter to assure excellent precision as well as reliability in an assortment of manufacturing processes.Shaanxi Zhiyanyu is a professional supplier of high quality process control test and measurement instruments.

We specialise in selling all kinds of transmitters, including pressure transmitters, temperature transmitters, flow transmitters, level meters, flow meters, pressure gauges, sensors, valve positioners and other instruments. They are widely used in chemical industry, petroleum, paper making, electric power, city gas, environmental protection, water treatment and other fields. Most of our products are exported to the Middle East, Asia, Africa and America. We also enjoy a high reputation at home and abroad. We can provide quotation for more products under this brand, which can satisfy your needs to the greatest extent!

Key Components

Lining Material: The flowmeter features a lining made from materials such as PTFE (Teflon) or PFA (Perfluoroalkoxy), which are resistant to corrosion and provide longevity in harsh environments.

Electrodes: Given that the electrodes are constructed of non-corrosive elements like titanium or stainless steel, respectively, consistency in transmitting signals and endurance are maintained.

Magnetic Field Generator: Across the flowmeter's sensing subject matter, a magnetic field that is uniform is produced by two magnets wound around the meter cylinder.

Design Features

Full-Bore Design: The flowmeter has a full-bore construction, which minimizes pressure drop and allows for the flow of solid particles and fibers without obstruction.

No Moving Parts: The meter's lifespan gets longer and maintenance requirements are decreased due to its dearth of parts that move mechanically.

Laminar Flow: Because the laminar flow pattern is preserved by design, accurate and dependable readings are achieved.

Product Function

The Axf Magnetic Flowmeter is designed to provide precise and uninterrupted flow measurement for a variety of conductive liquids. Its functionality includes:

High Accuracy Measurement: The flowmeter offers high accuracy, typically ±0.5% of reading, ensuring reliable flow data.

Wide Rangeability: With a rangeability of 10:1 to 200:1, the flowmeter can handle different flow rates without the need for recalibration.

Turbulence Insensitivity: The flowmeter is not affected by turbulence or changes in flow profile, providing consistent readings even in challenging conditions.

Multivariable Measurement: In addition to flow rate, the flowmeter can measure other parameters such as fluid temperature and density, offering a comprehensive analysis of the fluid's properties.

Data Integration: The flowmeter can be easily integrated with process control systems, providing real-time data for monitoring and decision-making.

Technical Specifications

Product Features

Durable and Reliable: The Yokogawa electromagnetic flow meter is built with high-quality materials to withstand harsh industrial environments and provide long-term reliability.

Low Maintenance: The flowmeter's design with no moving parts significantly reduces the need for maintenance, saving time and costs.

Wide Application Compatibility: Suitable for a broad range of applications, from water treatment to chemical processing, the flowmeter can handle various types of conductive fluids.

User-Friendly Operation: The flowmeter is designed for ease of use, with intuitive settings and clear display options.

Advanced Diagnostics: Advanced software algorithms provide self-diagnostics and predictive maintenance features, ensuring optimal performance and early detection of potential issues.

Customizable Options: Available in a variety of sizes, materials, and configurations to meet specific application requirements.

Energy-Efficient: The flowmeter's operation requires minimal power, contributing to energy savings and a lower environmental impact.

Application Fields

The Yokogawa electromagnetic flow meter is widely used across numerous industries due to its versatility and precision. Key application areas include:

Water and Wastewater Treatment: Monitoring flow rates in treatment processes, ensuring efficient operation and compliance with environmental regulations.

Chemical Processing: Accurate measurement of corrosive or abrasive chemicals, ensuring process control and safety.

Food and Beverage Industry: Hygienic design and materials suitable for measuring conductive liquids in food processing, such as milk, beer, and juices.

Oil and Gas: Measuring flow rates in pipelines for oil, gas, and water injection, contributing to efficient resource management and production optimization.

Power Generation: Monitoring coolant flow in power plants, ensuring optimal performance and safety of critical equipment.

Pulp and Paper Industry: Measuring the flow of black liquor and other conductive process fluids, aiding in process optimization and cost reduction.

Mining and Mineral Processing: Accurate measurement of slurries and other conductive materials, essential for efficient extraction and processing operations.

Technical Support and Services

Offering consumers broad solutions and exceptional goods is Shaaxi ZYY's mission. We provide a multitude of technical support and solutions, such as:

Product Training: For clients to be able to make the most of the product's abilities, our team of specialists offers training courses.

Customization Services: To ensure the best fit for their specific needs, we collaborate closely with prospects to tailor technologies to meet their unique demands.

After-Sales Support: After the flowmeter gets bought, our committed assistance team is available to help with any issues or inquiries that might crop up.

Maintenance and Repair: In order to guarantee the flowmeter's longevity and optimum functionality, we provide repair and upkeep services.

Certifications

The product is certified by various international organizations, ensuring compliance with global standards:

CNAS: Certified by the China National Accreditation Service for Conformity Assessment.

ROHS: Compliant with the Restriction of Hazardous Substances Directive.

ExNEPSI: Certified by the National Petroleum and Chemical Inspection and Testing Center.

ISO9001: Compliant with the International Organization for Standardization's quality management system.

MA: Certified by the Measurement Accreditation.

Packaging and Transportation

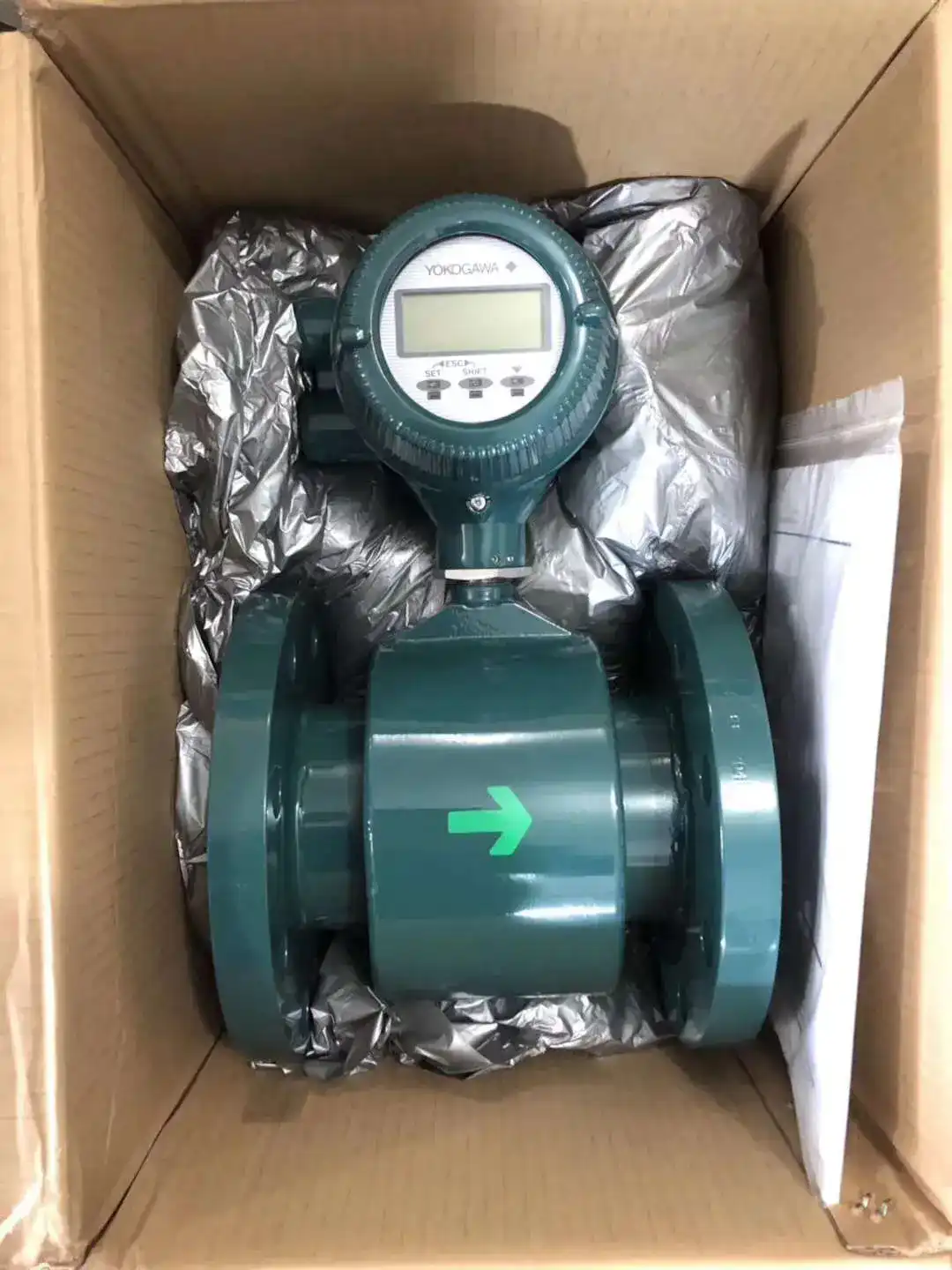

The Axf Magnetic Flowmeter is carefully packaged to ensure safe transportation. Each unit is wrapped in protective material and secured in a sturdy crate to prevent damage during shipping. We utilize reliable logistics partners to ensure timely and secure delivery to customers worldwide.

Contact Us

Professional instrument merchant Shaaxi ZYY concentrates on providing foreign brands, such as ABB, Siemens, Emerson, Rosemount, Yokogawa, E+H, Azbil, Fisher, and additional funds. Having been a supplier for more than ten years, we provide an extensive array of product designs and are devoted to giving our shoppers expert services. Please send an email to us at lm@zyyinstrument.com with your specific requirements and for additional information about the cost of the item. It gives us immense joy to work with you and observe your firm flourish.
