Level Transmitter

We're professional Level Transmitter manufacturers and suppliers in China, providing high quality products with low price. We warmly welcome you to buy or wholesale bulk Level Transmitter for sale here from our factory. For fast delivery, contact us.

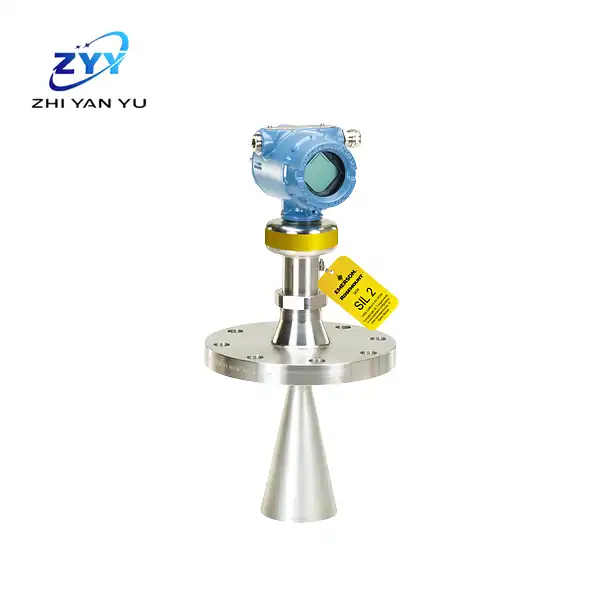

Rosemount 5408

Specifications: Standard accuracy ± 0.08 in. (± 2 mm), extra accuracy ± 0.04 in. (± 1 mm)
Measuring range 131 ft (40 m), Rosemount 5408:SIS 82 ft (25 m) in safe mode
Working pressure 1450 psi (100 bar)
Operating temperature -76 to +482 °F (-60 to +250 °C)
Power Supply 4-20mA/HART: 12-42.4 VDC (Intrinsically Safe Installation 12-30 VDC), Foundation™
Fieldbus: 9-32 VDC (Intrinsically Safe Installation 9-30 VDC, FISCO 9-17.5)
Communication protocol 4-20mA HART® (two-wire loop power supply), Foundation™ fieldbus
Certifications ATEX, IECEx, FM, CSA, 3-A and CRN
IEC 61508 certification for safety up to SIL2
Spill protection TÜV tested and WHG certified
Antenna Type Conical Antenna, Process Sealed Antenna, Parabolic Antenna

Rosemount 5300

Suitable for liquid level measurement.
Cost effective and reliable.
No moving parts and no calibration required.
The influence of process conditions is small.
Supports top-down liquid level measurement and interface measurement.
Operating pressure range: full vacuum to 580 psi.
Operating temperature range: -40 to 150°C.
Communication protocol: 4-20 mA/HART™, Modbus®.
Multiple probe types.

Rosemount 3051l Liquid Level Transmitter

Installation: The product can be installed directly or used with Tuned-System™ components.
Warranty: Offers a 5-year limited warranty.
Maximum Working Pressure: The product can handle up to 300 psi (20.68 bar).
Temperature Range: It operates within a temperature range from -105°C (-157°F) to 205°C (401°F), depending on the fill fluid used.
Communication Protocols: Compatible with various protocols including 4-20 MA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS® PA, and 1-5 V low power HART®.
Seal System: Features a direct mounting system.

Rosemount 2051l

Multiple process connections, materials and output protocols
Specifications: Maximum operating pressure 300psi, process temperature range -157°F to 401°F
Communication protocols: 4-20mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5V Low Power HART®
Transmitter connections: welded, serviceable process connections, flanged
Process wetted materials: 316L SST, Alloy C-276, Tantalum
Diagnostics Basic Diagnostics Certifications: SIL 2/3 certification based on IEC 61508, NACE® certification, hazardous location certification
