Rosemount 2051l
Specifications: Maximum operating pressure 300psi, process temperature range -157°F to 401°F
Communication protocols: 4-20mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5V Low Power HART®
Transmitter connections: welded, serviceable process connections, flanged
Process wetted materials: 316L SST, Alloy C-276, Tantalum
Diagnostics Basic Diagnostics Certifications: SIL 2/3 certification based on IEC 61508, NACE® certification, hazardous location certification

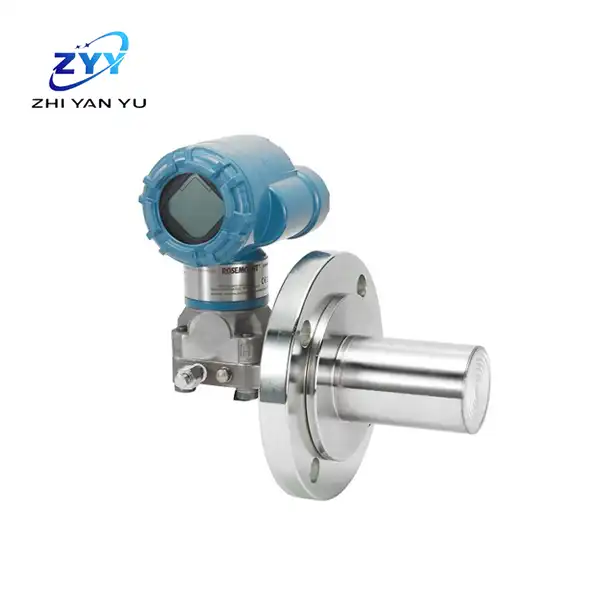

Product Details: Rosemount 2051L Pressure Transmitter
The Rosemount 2051L is a robust and versatile pressure transmitter designed for precise liquid level measurement in a variety of industrial applications. This flange-mounted device leverages advanced sensor technology to provide accurate and reliable pressure readings, ensuring optimal process control and efficiency.Shaanxi Zhiyanyu is a professional supplier of high quality process control test and measurement instruments.
We specialise in selling all kinds of transmitters, including pressure transmitters, temperature transmitters, flow transmitters, level meters, flow meters, pressure gauges, sensors, valve positioners and other instruments. They are widely used in chemical industry, petroleum, paper making, electric power, city gas, environmental protection, water treatment and other fields. Most of our products are exported to the Middle East, Asia, Africa and America. We also enjoy a high reputation at home and abroad. We can provide quotation for more products under this brand, which can satisfy your needs to the greatest extent!
Product Features:
Advanced Sensor Technology: The 2051L utilizes Emerson's proprietary capacitance sensor technology, ensuring high accuracy and long-term stability even in challenging environments.
Diverse Measurement Range: With a wide range of pressure measurements, the transmitter can handle both low and high-pressure applications with ease.
HART Protocol Support: The built-in HART protocol allows for two-way digital communication, enabling remote configuration, monitoring, and troubleshooting.
Rugged Construction: The transmitter is housed in a sturdy casing designed to withstand harsh conditions, including high temperatures, pressures, and corrosive environments.
User-Friendly Interface: The optional LCD display provides clear, real-time readings of process variables, simplifying operation and maintenance.
Customizable Output: The rosemount 2051l liquid level transmitter offers configurable outputs, including 4-20 mA and 1-5 Vdc, to suit the requirements of different control systems.
Intrinsic Safety: The transmitter is designed with intrinsic safety features, making it suitable for use in hazardous areas where the risk of explosion is present.
Technical Specifications:
| Specification | Description |
|---|---|
| Measurement Range | -250 to 250 inH2O (-6.2 to 6.2 bar) |
| Output Options | 4-20 mA HART, 1-5 Vdc HART Low Power |
| Accuracy | ±0.075% of span for standard, ±0.065% for high accuracy option |
| Temperature Range | -40 to 250 °F (-40 to 121 °C) with silicone fill |
| Pressure Limits | Up to 3626 psig (250 bar) for ranges 2-5 |
| Enclosure Rating | Type 4X, IP65, IP66, IP68 |
| Electrical Connections | 1/2–14 NPT, G1/2, M20 × 1.5 (CM20) conduit |
Applications:
Oil and Gas Industry: The rosemount 2051l liquid level transmitter is ideal for monitoring reservoir pressures and ensuring efficient extraction and processing of hydrocarbons.
Chemical Processing: Its corrosion-resistant construction makes it suitable for use in chemical plants where aggressive substances are handled.
Water and Wastewater Treatment: The transmitter's accuracy and reliability are crucial for maintaining optimal flow and pressure in water distribution and treatment systems.
Power Generation: In power plants, the 2051L can monitor steam pressures and maintain boiler efficiency.
Food and Beverage: The transmitter's hygienic design and materials make it suitable for use in process control for food and beverage production.
Technical Support and Services:
Shaaxi ZYY offers comprehensive technical support and services to ensure that our customers get the most out of their Rosemount 2051L transmitters. Our team of experts is ready to provide tailored solutions, from product selection and configuration to installation and maintenance. We pride ourselves on our commitment to customer satisfaction and our ability to deliver high-quality products that meet the unique needs of each application.
Certifications:
CNAS (China National Accreditation Service for Conformity Assessment)
ROHS (Restriction of Hazardous Substances)
ExNEPSI (National Explosion Protection System of China)
ISO9001 (International Organization for Standardization)
MA (Meter Approval)
Packaging and Transportation:
The Rosemount 2051L is securely packaged to ensure safe transportation and delivery. Each unit is individually boxed with protective materials to prevent damage during transit. We adhere to strict packaging guidelines to ensure that your product arrives in the same condition it left our facility.
Contact Us:
Shaaxi ZYY is a professional instrument company specializing in the sales of premium brands such as Emerson Rosemount, Yokogawa, Endress+Hauser (E+H), Azbil, Fisher, Honeywell, ABB, Siemens, and more. With over a decade of experience as a supplier, we offer a wide range of product models and are dedicated to providing professional solutions for our customers. For more product pricing information, please contact us at lm@zyyinstrument.com. We look forward to serving you and becoming your trusted partner in the world of industrial instrumentation.
