Rosemount 2090P

Product Details: Rosemount 2090P Pulp and Paper Pressure Transmitter

The Rosemount 2090P Pulp and Paper Pressure Transmitter is a robust and reliable instrument designed to provide accurate, stable, and reliable pressure measurements tailored for the demanding environments of the pulp and paper industry. With its 1-in. flush mount compatible with PMC process connection or 1½-in. threaded mounting connection, this transmitter is engineered to combat clogging issues associated with highly viscous processes that are prone to crystallization, polymerization, or precipitation.

Shaanxi Zhiyanyu is a professional supplier of high-quality process control testing and measuring instruments. We specialize in selling various transmitters, including pressure transmitters, temperature transmitters, flow transmitters, liquid level meters, flow meters, pressure gauges, sensors, valve positioners and other instruments. Widely used in chemical industry, petroleum, papermaking, electric power, city gas, environmental protection, water treatment and other fields. Most of our products are exported to the Middle East, Asia, Africa and America. It also enjoys a high reputation at home and abroad. We can provide selection quotations for more products of this brand, which can best meet your needs!

Product Features:

Versatile Mounting Options: The Rosemount 2090P offers a choice between flush mount and threaded mounting connections, ensuring compatibility with a wide range of process vessels and piping systems. The flush mount design positions the isolation diaphragm level with the vessel or pipe walls, minimizing the risk of clogging.

Wide Pressure Ranges: Available with absolute or gauge pressure ranges up to 300 psi, the transmitter provides a 20:1 turndown ratio, allowing for the measurement of pressures from 1.5 psi to 300 psi across only three transmitter ranges. This flexibility reduces inventory requirements and enhances system efficiency.

HART Communication Protocol: The transmitter leverages the 4–20 mA HART Protocol, enabling easy re-ranging, calibration, and troubleshooting without the need for local adjustments. This digital communication capability enhances the device's interoperability and simplifies maintenance procedures.

High Accuracy: With the P8 high accuracy option, the Rosemount 2090P achieves a reference accuracy performance of 0.10%, ensuring precise pressure readings that are critical for process control and optimization.

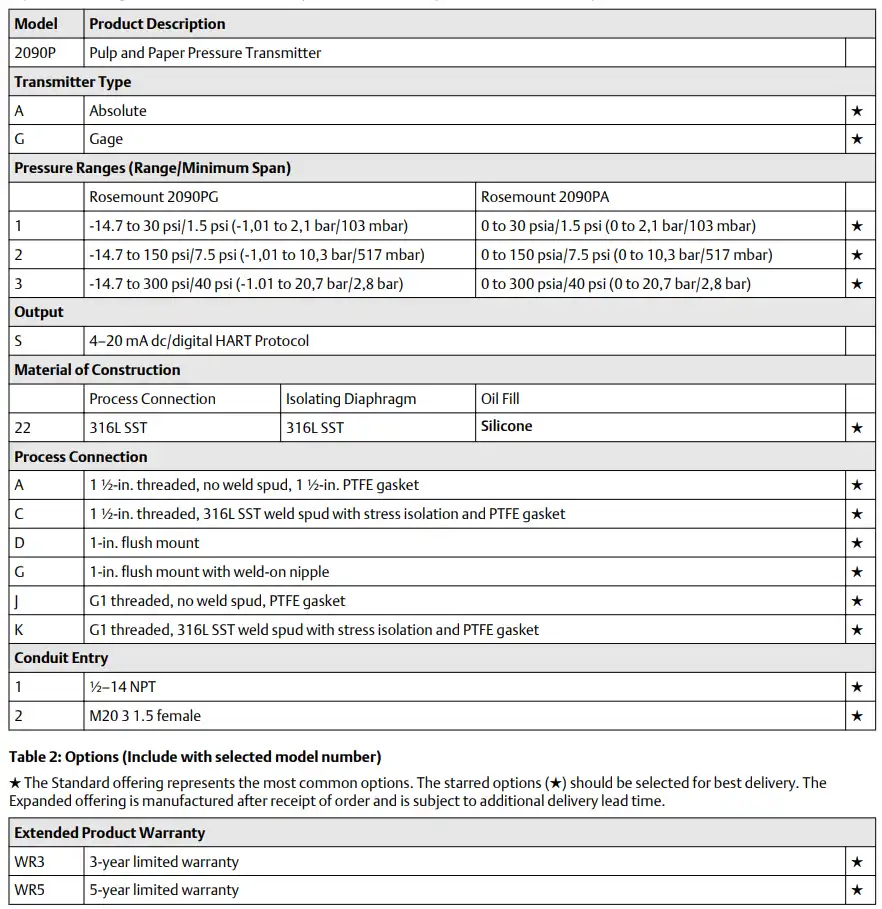

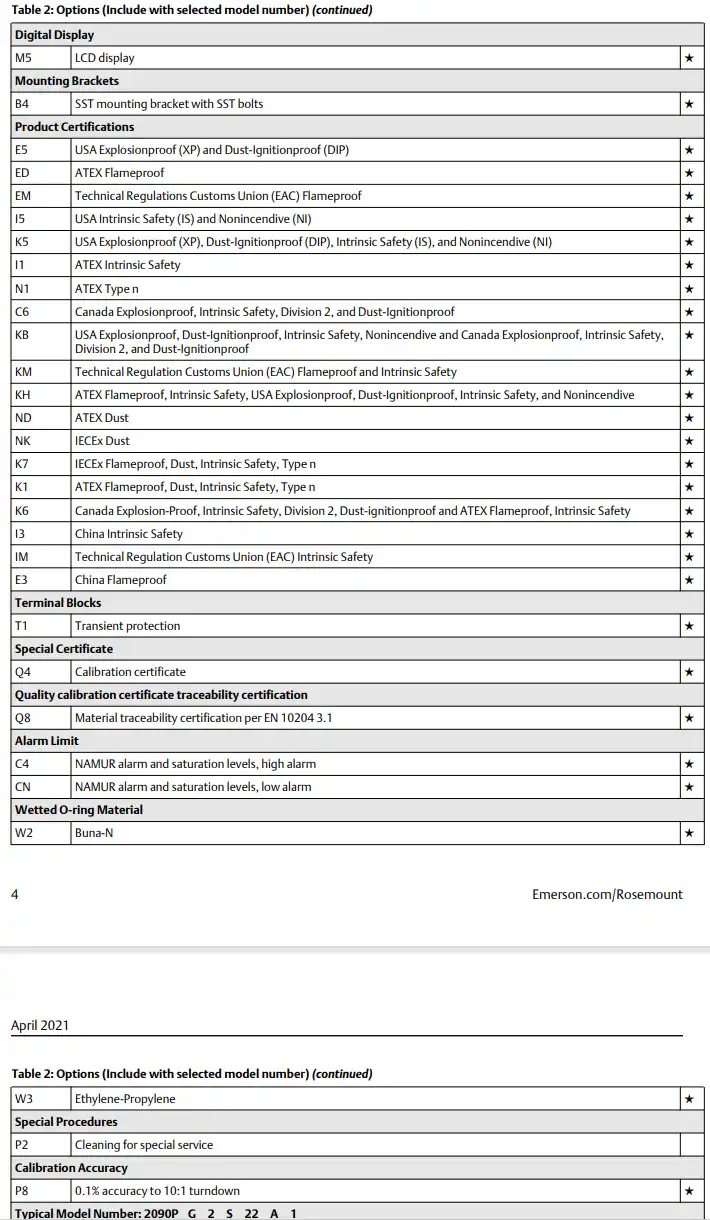

Technical Specifications:

Product Highlights:

Durable Construction: The Rosemount 2090P features a single-filled sensor system with full sensor compensation, ensuring outstanding accuracy and long-term stability. The transmitter's construction materials, including 316L SST for the isolating diaphragm and process connection, are chosen for their resistance to corrosion and compatibility with the aggressive chemicals common in pulp and paper processes.

Advanced Diagnostics: Equipped with self-diagnostics that detect sensor or microprocessor failures, the transmitter can alert the user by driving the analog signal high or low, with the failure mode being user-selectable.

Ease of Calibration: The transmitter is factory calibrated to the customer's specified range, ensuring minimal setup required upon installation. If no calibration is specified, the transmitter is calibrated at maximum range.

Environmental Adaptability: The Rosemount 2090P is designed to perform under varying conditions, with humidity limits accommodating 0–100% relative humidity and the ability to withstand high-viscosity applications.

Customizable Configuration: The transmitter can be customized with a digital display, mounting brackets, and a range of certifications to meet specific application requirements.

Applications:

Pulp and Paper Industry: The Rosemount 2090P is specifically tailored for the pulp and paper industry, where it excels in applications involving highly viscous processes, such as those involving chemicals, slurries, and other challenging media.

Chemical Processing: Its robust design and high accuracy make it suitable for chemical processing applications where precise pressure control is critical for reaction processes and material handling.

Food and Beverage: The transmitter's materials and design ensure compatibility with the stringent hygiene and cleanliness requirements of the food and beverage industry.

Water and Wastewater Treatment: The Rosemount 2090P can be utilized in water and wastewater treatment plants for monitoring pressure in pumps, pipelines, and treatment processes.

Power Generation: In power plants, the transmitter can be used to monitor steam and other process pressures, contributing to efficient energy production.

Technical Support and Services:

Shaaxi ZYY offers comprehensive technical support and services for the Rosemount 2090P, ensuring that our clients receive the best possible experience with their pressure transmitters. Our team of experts is ready to provide solutions, from pre-purchase consultation to post-installation support, ensuring that every aspect of your pressure measurement needs is met with precision and reliability.

Certifications:

CNAS (China National Accreditation Service for Conformity Assessment)

ROHS (Restriction of Hazardous Substances)

ExNEPSI (National exploraion Safety Certification in Mexico)

ISO9001 (International Organization for Standardization Quality Management System)

MA (Meter Approval)

Packaging and Shipping:

The Rosemount 2090P Pulp and Paper Pressure Transmitter is packaged to ensure safe transit, utilizing robust materials and protective measures to prevent damage during shipping. Each unit is carefully inspected before dispatch and is securely packaged to withstand the rigors of international transportation.
