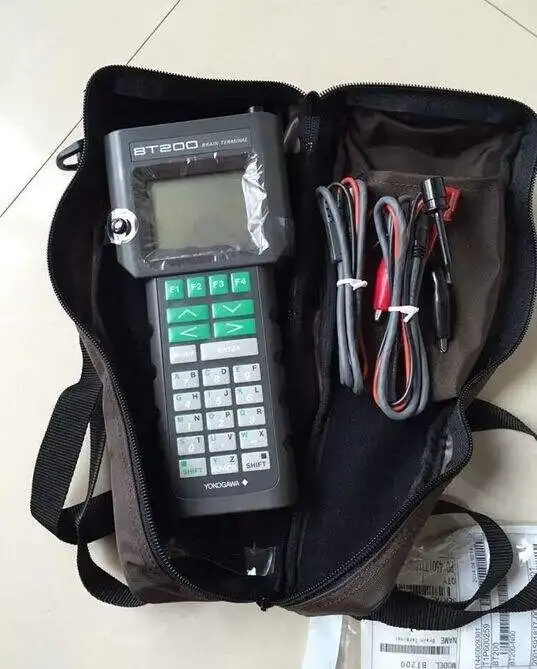

Yokogawa BT200 hand manipulator

The BT200 Handheld intelligent terminal is a portable terminal, which is used with the instrument using the BRAIN communication protocol to set, change, display and print parameters (such as grade, output mode, range, etc.), input/output values and self-diagnostic results, set the output of constant current and zero. When the system is started or maintained, the BT200 can be used by connecting it to the 4~20mA communication signal line or connecting it to the interface provided on the ESC(Signal Regulation Communication Card).

Product characteristics

1. Online and communication
During communication, the modulated signal does not interrupt the 4~20mA DC signal.

2. It can be shared with Yokogawa meters
The BT200 smart terminal can be used with all Yokogawa meters that use BRAIN communication.

3. Easy to operate
Large display (8 lines, 21 characters per line), using English display users see at a glance, easy to set and change.

4. Information self-diagnosis/protection function
Self-checking function
Password setting data protection
Low voltage alarm
Automatic power off.

product-537-669

Product specification

• ① Connection of communication signals: special cable, 1.1m(3.6ft) long

• ② Communication line:

• Length: 2Km(1.24 mi)(0.75~1.25m ²) meter cable)

• Load resistance: 250~600Ω(including cable resistance)

• Load capacitance: below 0.22υF

• Load inductance: 3.3mH or less

• Distance with the power cord: 15cm or more (avoid walking the line)

• ③ Display: LCD dot matrix, 21 characters x 8 lines

• Control: touch switch (4 function keys, 20 operation keys, a power switch)

• ⑤ Print (BT200-P00) : thermal printing

• ⑥ Power supply: 5 AA1.5V alkaline dry batteries (LR6/AM3(N))

• ⑦ Size: BT200-N00...... 228×110×51mm
(9.0 * 4.3 * 2.0 inch)
BT200-P00…… .321×110×61mm
(12.6 * 4.3 * 2.4 inch)

Packaging and Transportation

Shaaxi ZYY takes great care in packaging the Yokogawa BT200 to ensure that it reaches our customers in perfect condition. We utilize robust packaging materials and methods to protect the device during transportation. Our logistics partners are chosen for their reliability and efficiency, ensuring that your product is delivered safely and on time.

product-1-1

Contact Us

Shaaxi ZYY is a professional instrument company with over a decade of experience in supplying premium brands such as Emerson, Rosemount, Yokogawa, E+H, Fisher, Honeywell, ABB, Siemens, and more. We offer a wide range of product models and are dedicated to providing our clients with professional solutions tailored to their needs. For more information on product pricing or to discuss your requirements, please contact us at lm@zyyinstrument.com. We look forward to assisting you and helping you achieve your industrial process control objectives.

YOU MAY LIKE

Fisher Valve Positioner DVC6200

The Fisher FIELDVUE DVC6200 valve Positioner allows equipment to operate as close to the set point as possible for more accurate control and improved product quality. Monitor valve operation online with FIELDVUE performance diagnostics to assess performance and reliability.

AMS Trex device communicator

Increase reliability with the AMS Trex device communicator. Increase field productivity by performing more types of tasks with Trex equipment. Easily solve complex equipment problems without the need for other dedicated tools. The Trex communicator is designed to withstand harsh conditions in and around manufacturing facilities and has passed safety assessments, so it can be carried everywhere. Use Trex to deliver results and maintain the reliability of your field assets.

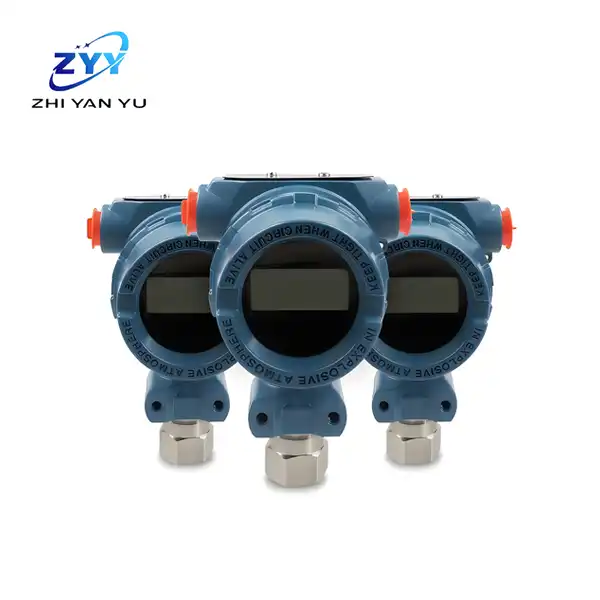

Rosemount 3051 GP

10-year stability and 0.04% range accuracy
Graphical backlit display, Bluetooth® connectivity
5-year warranty, range ratio 150:1
Support multiple communication protocols
Measuring range up to 1378.95bar
Various process wetted materials
Comprehensive diagnostic capabilities
SIL 2/3 certified according to IEC 61508 etc.
The wireless update rate is adjustable and the power module has a service life of 10 years.

Yokogawa Ejx430a

Using single crystal silicon resonant sensor technology.
Suitable for measuring liquid, gas or steam pressure.
Output 4~20mA DC current signal.
Fast response, remote setup and monitoring.
Diagnostic function to detect blockage of the pressure pipeline or abnormality of the heating system.
FF fieldbus type is available.
TÜV certified and meets SIL 2 safety requirements.

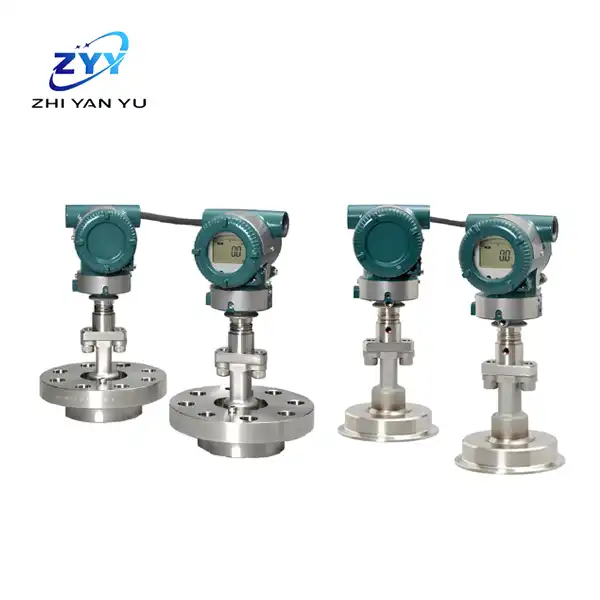

EJX530A Yokogawa
