Rosemount 8721 Sanitary electromagnetic flowmeter sensor

Rosemount 8721 Sanitary electromagnetic flowmeter sensor

The Rosemount 8721 Sanitary electromagnetic flowmeter sensor features a fully welded gauge body and is specifically designed for food, beverage and life science applications for safe, hygienic and reliable performance. All contact surfaces are manufactured using FDA-approved materials and designed to meet 3A and EHEDG standards. In addition, 8721 offers a wide range of hygienic process connectors with easy-to-access process gaskets for easy inspection and maintenance.

Product Specifications

1. Accuracy: up to 0.25% volumetric flow accuracy at 13:1 flow range ratio, 0.5% guaranteed at 40:1 flow range ratio.
2. Diameter: ½-4 inches (15-100 mm).
3. Lining material: PFA
4. Electrode material: 316L stainless steel, nickel alloy, platinum.
5. Process connector: Tri-Clamp® sanitary connector.
IDF sanitary connector (screw type).
Weld the short tube.
DIN 11851 (imperial and metric).
DIN 11864 (types -1 and -2 A).
SMS 1145.
DEN US 50 Welded short pipe.
6. Product certification: 3-A, EHEDG Type EL, PMO (M-b-350).
7. Versatility: Compatible with all transmitters of the 8700 series.
Compatible with the following conventional transmitters: 8712D, 8712C, 8732C, 8742C.

product-662-512

Product features

1. Lightweight and compact stainless steel design, easy to install.
2. Can be used for Grade A milk processing with FDA-approved materials including EHEDG certified 3-A finish.
3. All-welded instrument body design to meet the safety of health applications.
4. The sensor is CIP/SIP cleanable, the inner diameter of the sensor matches the process pipe, and there will be no step change that is difficult to clean.
5. Equipped with a large number of available sanitary process connectors to meet almost any requirement.
6. Easily accessible process gaskets, more conducive to detection and maintenance.
7. Without hindrance design, there is no need for any operation parts and their maintenance and repair, reducing costs and improving efficiency.

Packaging and Transportation

Shaaxi ZYY takes great care in packaging and transporting the Rosemount 8721 flow meter to ensure it reaches our customers in pristine condition. We use industry-standard packaging materials and collaborate with reputable logistics partners to deliver the product safely and efficiently to your doorstep.

product-1-1

Contact Us

Professional equipment seller Shaaxi ZYY concentrates on selling major manufacturers, including ABB, Siemens, Yokogawa, Endress+Hauser, Emerson Rosemount, Fisher, and additional information. Our company has been operational for a period of fifteen years, and we are committed to supplying our clients with customized service within an array of product categories. Please message us at lm@zyyinstrument.com for any additional details concerning our goods and their costs. We are delighted to be of service to you and to help you and your company grow.

YOU MAY LIKE

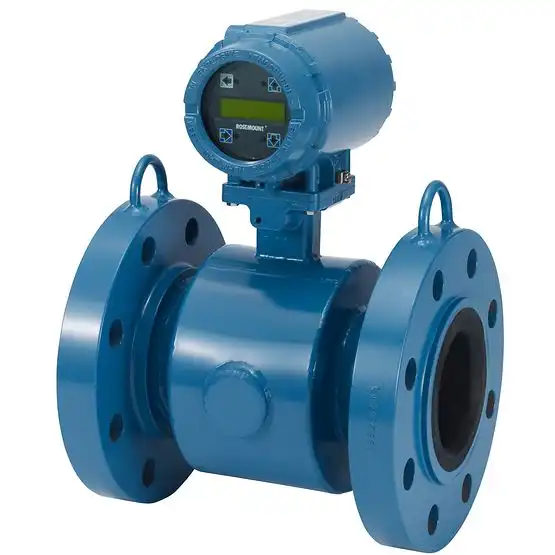

Rosemount 8705 Flange type electromagnetic flowmeter sensor
