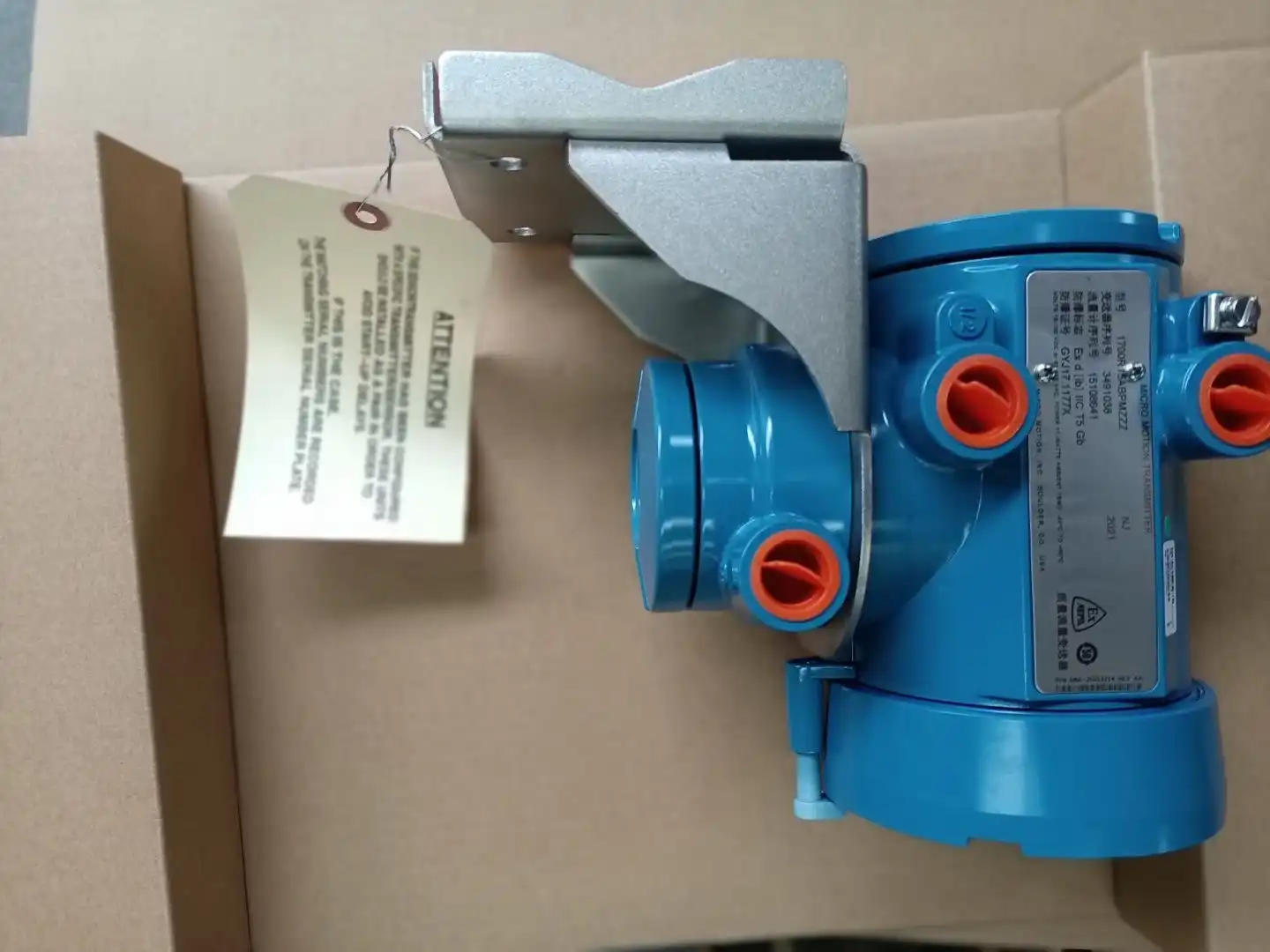

Rosemount High precision 1700 single variable field installation flowmeter

Rosemount High precision 1700 single variable field installation flowmeter

The field-mounted transmitter uses MVD technology and supports compact, all-in-one installation. These transmitters use a reinforced housing that meets Class I Zone 1 explosion-proof requirements with an optional local operating interface for easy viewing of the flow meter. Flowmeter debugging is simple and straightforward, with almost no special programming requirements.

Product specification

1. Output variables:
• Mass flow
• Volume flow
2. Local Display panel: Standard user interface with 2-line LCD display
• Two optical buttons for local operation
• Glass or plastic dial options
3. Power supply: AC/DC input automatic switching, automatic identification of power supply voltage
85 to 265 VAC, 50/60 Hz, typical value 6 W, maximum 11 W
•18 to 100 VDC, typical value 6 W, maximum 11 W
• In accordance with EN 61010-1 (IEC61010-1) revised version 2 of the low-voltage equipment Specification 2006/95/EC, installation (overvoltage) Category II, pollution level 2
4. Input/output signal:
• One active 4-20 mA output
• One active frequency output
• Frequency output can be configured as discrete output
5. HART:
• The Bell 202 signal is superimposed on the primary milliamp output
6. Installation options: Field installation type
• Integrated mount to high precision F, R or H series sensors
• Split-mounted to any 4-wire or 9-wire high-precision Coriolis sensor
7. Application type:
• Continuous process control
• Two-phase flow/gas bearing
• Instrument calibration
• SIS certified
8. Hazard Certification:
• Class I, Zone 1
• Class I, Zone 2
• Zone 1
• Zone 2

product-1440-1080

Product characteristics

1. Adopt integrated installation or split installation to maximize flexibility.
2. Using MVD digital processing technology, it can receive performance diagnosis in pinch applications and air-filled batch applications.
3. It reduces the wiring cost and can be easily and quickly installed.
4. Concentration and net flow measurements are available without additional instrumentation.
5. Obtained SIL2 and SIL3 accreditation and certification for trade handover.
6. Verify the health of the sensor online with true field verification while the process is running and without the use of auxiliary references.
7. With the WirelessHART solution, you can obtain additional diagnostic and process information without additional wiring costs.
8. Robust Class 1 classification/Zone 1 housing and optional local operator interface for easy flow meter operation.

Packaging and Transportation

Our meters for flow are wrapped and shipped with extreme care to guarantee that they reach you damaged. Each unit is securely packaged to withstand the rigors of transportation and is shipped using reliable carriers to ensure timely delivery.
