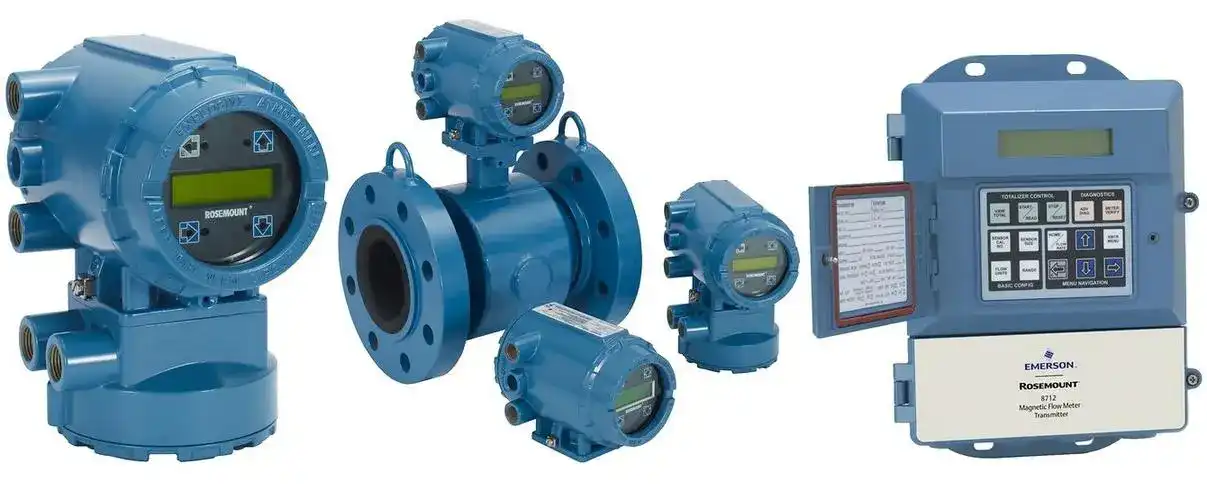

Rosemount 8705 Flange type electromagnetic flowmeter sensor

Rosemount 8705 flanged electromagnetic flowmeter sensors provide long-lasting, reliable performance even in demanding applications. The all-welded structure provides complete airtight protection against moisture and other contaminants. The sealed housing protects the internal components and wiring from erosion, even in harsh environments, thus guaranteeing the reliability of the sensor. Easy service in the field with removable and replaceable terminals without the need to replace the entire meter.

Rosemount 8705 Product specification:

1. Accuracy up to 0.15% volume flow accuracy at 13:1 flow range ratio and 0.25% at 40:1 flow range ratio
2. Pipeline specification 15-900mm (½ -36in)
3. Lining materials PTFE, ETFE, PFA, polyurethane, neoprene rubber, linolenic ester natural rubber
3. Electrode material 316L stainless steel, nickel alloy, platinum, tantalum, titanium
6. Flange grades ASME B16.5 150-2500 DIN PN 10-40AS 2129 Table D and EAWWA C207 Table 3 Class D (only 30-36 inches)
7. Diving protection IP68 (sealed cable waterproof connector recommended)
8. Interchangeability Compatible with all transmitters of the 8700 series

product-1207-500

product-2304-3072

2. Product Features:

1. For complete protection, a fully welded sensor housing provides a closed seal
2. Use a removable, replaceable terminal to avoid process stops and enable on-site repairs
3. The electrode is also surrounded by an optional secondary containment that captures all potential process fluid leakage information
4. Fully welded sensor housing ensures reliable performance in particularly harsh environments
5. With optional lining protectors, installation damage and leading edge wear can be prevented.
6. An unobstructed design without any moving parts minimizes the need for maintenance and repair

3. Packaging and Shipping:

Each Rosemount 8705 Flow Meter is carefully packaged to ensure safe transportation and delivery. We prioritize the protection of our products during transit, utilizing sturdy packaging materials and efficient shipping methods to guarantee the integrity of your order upon arrival.

product-1-1

4. Contact Us:

For more information on the Rosemount 8705 Flow Meter or to request a quote, please contact us at: Email: lm@zyyinstrument.com.

Shaaxi ZYY is a specialized instrument company with expertise in the distribution of imported brands such as Emerson, Rosemount, Yokogawa, Endress+Hauser, Azbil, Fisher, Honeywell, ABB, Siemens, and more. With our commitment to providing professional solutions and over a decade of supplier experience, we welcome the opportunity to serve your instrumentation needs.
