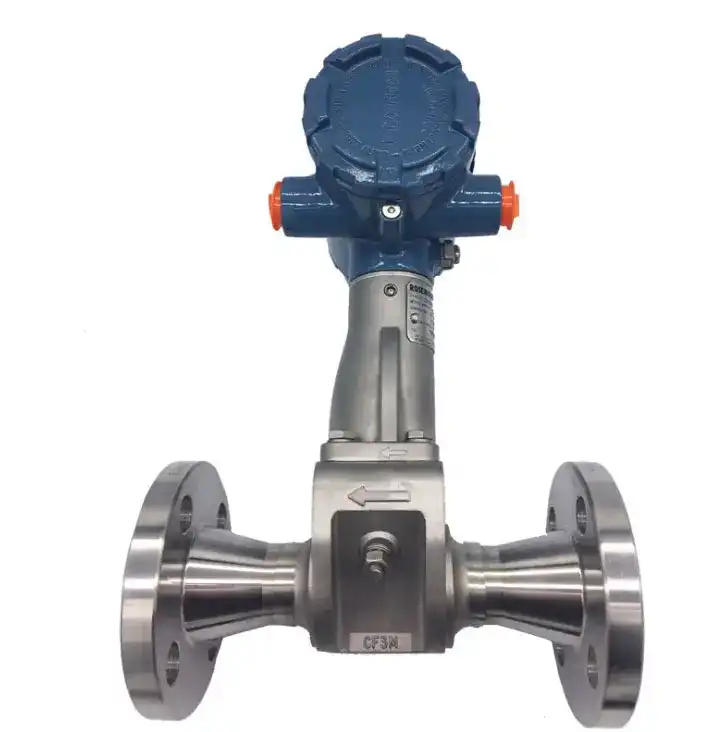

Rosemount 8800 Vortex flow meter

Rosemount 8800 Vortex flow meter

The Rosemount 8800 Series Vortex flow meters offer excellent stability with a gasket - and clog-free gauge body that eliminates potential leak points, improves availability, and reduces unplanned process stops. The Emerson Rosemount 8800 Vortex flow meter has a unique design with isolated sensors that allow flow and temperature sensors to be replaced without breaking process seals.

Rosemount 8800 Vortex Flow Meter Specifications:

1. Flowmeter accuracy: When using the 8800 MultiVariable flowmeter (MTA/MCA option), the accuracy of the mass flow rate in water is ± 0.70%.
When using the 8800 MultiVariable flowmeter (MTA/MCA option), an accuracy of ± 2% of the mass flow rate in the water is obtained.
When using the 8800 MultiVariable flowmeter (MPA option), an accuracy of ± 1.3% of the flow rate is obtained at a pressure of 30 psia to 2,000 psia in the steam.
When using the 8800 MultiVariable flowmeter (MCA option), an accuracy of ± 1.2% of the flow rate at 150 psia in the steam is obtained.
With 8800 MultiVariable flowmeter (MCA option), an accuracy of ± 1.3% of flow rate at 300 psia in steam is obtained.
With 8800 MultiVariable flowmeter (MCA option), an accuracy of ± 1.6% flow rate at 800 psia in steam is obtained.
With the 8800 MultiVariable flowmeter (MCA option), an accuracy of ± 2.5% of the flow rate at 2,000 psia in steam is obtained.
Accuracy of liquid volume flow rate ± 0.65% (uncompensated).
Gas and steam volume flow rate ± 1% accuracy (uncompensated).
2. Range ratio: 38:1.
3. Output: 4-20mA, based on HART® or 7
4-20mA, based on HART® 5 or 7 and adjustable pulse output.
FOUNDATION fieldbus ITK6 with 2 analog input modules, 1 standby link active scheduler block, 1 integrator block and 1 PID block.
Modbus RS-485 with device status and 4 variables.
4. Liquid material: stainless steel; 316/316L and CF3M.
Nickel alloys - C-22 and CW2M.
High temperature carbon steel - A105 and WCB.
Low temperature carbon steel - LF2 and LCC.
Duplex UNS S32760 and 6A.
5. Flange options: ANSI 150 to 1500 grade.
DIN PN 10 to PN 160.
JIS 10K to 40K.
The flange faces have multiple orientations.
6. Operating temperature: -330°F to 800°F (-200°C to 427°C).
7. Pipe diameter: Flange type: 1/2" to 12" (5 to 300mm).
Sandwich type: 1/2" to 8" (15 to 200 mm).
Double-ended: 1/2" to 12" (15 to 300mm).
Reducer: 1" to 14" (25 to 350mm).

product-728-732

Rosemount 8800 Vortex Flowmeter Features:

1. The isolation sensor design allows in-line replacement without breaking the process seal.
2. The unique gasket less gauge body design improves plant availability and reduces potential leakage points.
3. Non-clogging meter body design eliminates the process shutdown time and maintenance costs associated with clogging and pushing pipelines.
4. Anti-vibration through mass balance sensor, and adaptive processing of digital signal through visual filtering function.
5. Each flowmeter is equipped with a standard internal signal generator, simplifying the calibration of electronic components.
6. All flow meters are pre-configured and hydrostatic tested upon arrival for immediate installation.
7. SIS compliance is simplified using two-head vortex flowmeters and four-head vortex flowmeters.
8. Use Smart Fluid Diagnostics to detect changes in the liquid to gas phase.

Packaging and Transportation

Each rosemount 8800 vortex flow meter is packaged meticulously to withstand the rigors of transportation, adhering to international shipping standards, ensuring that it arrives in perfect condition, ready for installation.

product-1-1

Contact Us

For further information and to request quotes for the Rosemount 8800 Series or other premium instrument brands, contact Shaaxi ZYY at lm@zyyinstrument.com. With a wealth of experience and a broad product portfolio, Shaaxi ZYY is dedicated to delivering professional solutions tailored to meet the needs of a global clientele.
